11. Webhook Configuration & Payload

SADAD provides a Webhook mechanism to notify merchants about transaction events independently of customer redirection or callback URL execution.

Webhooks are particularly useful in scenarios where:

• The customer closes the browser or app
• Redirection to the callback URL does not occur
• The merchant requires a reliable server-side notification

---

Webhook vs Callback (Important Difference)

Callback URL	Webhook
Triggered after checkout flow	Triggered immediately after transaction creation
Depends on customer browser/app	Independent of customer behavior
Form POST (x-www-form-urlencoded)	JSON POST
Used for final order update	Used for early & reliable notification

Merchants are recommended to support both mechanisms.

---

Webhook Configuration

1. Log in to the SADAD Merchant Panel
   👉 https://panel.sadad.qa

2. Ensure Online Payments is selected

3. Navigate to Payment Gateway → Webhook

4. Enter your Webhook URL

5. Save the configuration

---

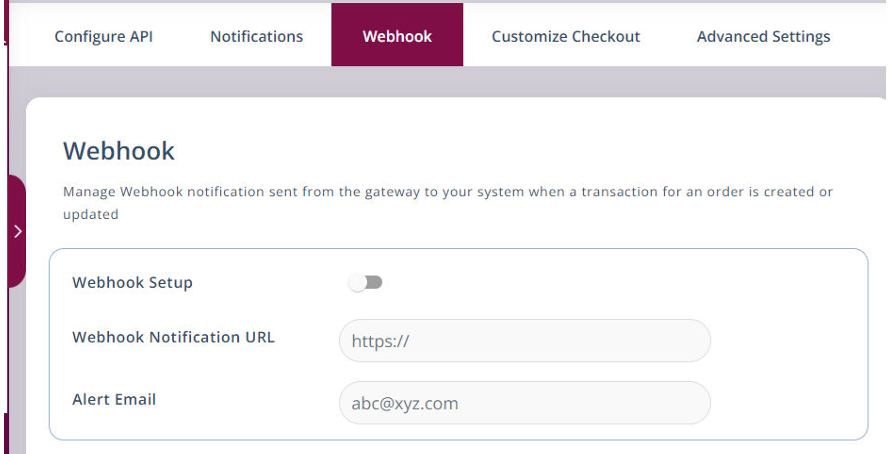

SADAD Merchant Panel – Webhook configuration screen

---

Webhook Payload Format

Webhook notifications are sent via HTTP POST with a JSON body.

{
  "invoiceNumber": "SD64573479587",
  "isTestMode": 0,
  "merchantId": "123567",
  "message": "success",
  "transactionNumber": "SD2418209648273",
  "transactionStatus": 3,
  "txnAmount": 5,
  "websiteRefNo": "SD3214578995",
  "checksumhash": "d5d33a4f3871a615ebf20d09aea43e866f4f602e01543bbe4bcd4c1cc93a0d03"
}

---

Webhook Parameters Explanation

Parameter	Description
invoiceNumber	Available only for invoice-based transactions
isTestMode	1 = Test, any other value = Live
merchantId	SADAD Merchant ID
message	success / failed
transactionNumber	SADAD transaction reference
transactionStatus	1 = In Progress, 2 = Failed, 3 = Successful
txnAmount	Transaction amount
websiteRefNo	Merchant order reference
checksumhash	Signature to verify authenticity

---

Verifying Webhook Authenticity

1. Extract and temporarily store checksumhash
2. Remove checksumhash from the payload
3. Sorts remaining parameters by key in ascending order
4. Prefix with your Secret Key
5. Append parameter values only
6. Generate SHA256 hash
7. Compare with received checksum

If matched, the webhook is trusted.

---

Replay Attack Handling (Important)

A replay attack occurs when a previously valid webhook message is resent by an attacker to trigger duplicate processing.

To protect against replay attacks, merchants must implement idempotent handling:

• Store and track transactionNumber (or invoiceNumber)
• Process each transaction only once
• If a webhook is received again for the same transaction, safely ignore it

⚠️ A replayed webhook will still have a valid checksum. Checksum validation alone does not prevent replay attacks.

Required Response Behaviour

Even if:

• The checksum is invalid
• The order reference does not match
• The webhook is a duplicate (replay)

You must always return:

HTTP/1.1 200 OK

Returning non-200 responses may cause SADAD to retry delivery and may increase replay risk.

---

Webhook Acknowledgement (Mandatory)

Your server must respond with:

{ "status": "success" }

---

note

Webhook signature verification uses the same SHA256 logic as request signature generation.

For hashing examples in multiple languages, refer to: Signature Generation (Request)
